When it comes to keeping your home comfortable, choosing the right HVAC relay switch is essential. With so many options available, it can be tough to know which ones stand out. The top 10 HVAC relay switches offer a blend of efficiency, durability, and safety features. Each choice caters to different heating and cooling needs, ensuring reliable temperature control. Let’s explore these switches and find the best fit for your system.

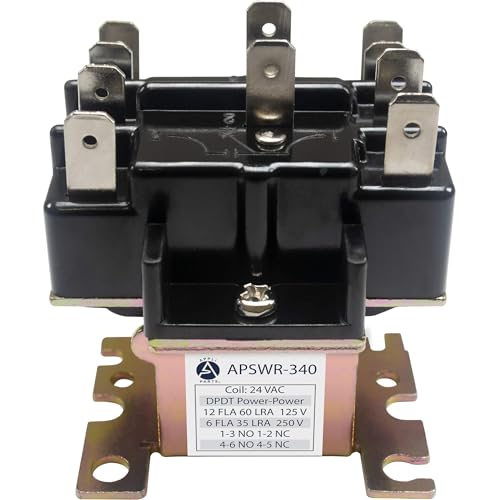

Appli Parts APSWR-340 General Purpose Switching Relay
If you’re looking for a reliable solution to control fan motors in your HVAC system, the Appli Parts APSWR-340 General Purpose Switching Relay is an excellent choice. This 24 VAC coil relay is designed specifically for HVAC applications, featuring a double pole double throw (DPDT) configuration. It efficiently manages fan motors in air handler units, ensuring peak performance. With ratings of 12 FLA and 60 LRA at 125V, it’s versatile enough for various electrical setups. Plus, it replaces multiple models, making it universally compatible. Choose the APSWR-340 for dependable operation and seamless integration into your existing system.
Best For: HVAC professionals and technicians seeking a reliable relay to control fan motors in air conditioning systems.
Pros:
- Versatile Compatibility: Replaces various models, making it suitable for different brands and electrical applications.
- Efficient Performance: Designed for HVAC use, ensuring proper management of fan motors in air handler units.
- Robust Ratings: Handles up to 12 FLA and 60 LRA at 125V, offering dependable operation for demanding tasks.
Cons:
- Limited Coil Voltage: Only operates on 24 VAC, which may not be suitable for all applications.
- Specific Use Case: Primarily designed for HVAC systems, limiting its use in other industries.
- Direct Replacement Requirement: Users must ensure dimensions and attributes closely match the original for proper functionality.
2 Pack 24V Fan Relay AC Switch SPST for HVAC and Furnace Control
The 2 Pack 24V Fan Relay AC Switch SPST is the ideal choice for HVAC professionals and DIY enthusiasts looking to enhance temperature control in heating and cooling systems. Designed for a variety of applications, this relay efficiently manages fan operations with low-voltage signals. Its premium metal construction guarantees durability, stability, and resistance to wear and corrosion. Installation is straightforward, featuring six wiring terminals and a clear diagram, though professional installation is recommended for safety. With impressive performance specifications, including a maximum switching power of 4986VA, this relay guarantees reliable and quiet operation, making it a top choice for your HVAC needs.
Best For: HVAC professionals and DIY enthusiasts seeking reliable and efficient fan control in heating and cooling systems.
Pros:
- Durable construction from premium metal materials ensures stability and longevity.
- User-friendly installation with clear wiring diagrams simplifies setup for users.
- High performance with a maximum switching power of 4986VA guarantees reliable operation.
Cons:
- Professional installation is recommended, which may incur additional costs for users.
- Limited to low-voltage signals, which may not be suitable for all applications.
- Requires adherence to safety standards, potentially complicating installation for inexperienced users.
Dreyoo 2 Pack 24V Fan Relay AC Switch
For HVAC technicians and DIY enthusiasts looking for reliable temperature control solutions, the Dreyoo 2 Pack 24V Fan Relay AC Switch stands out with its UL certification and robust performance. This SPST relay operates at 24VAC, handling a full load amperage of up to 12 amps, making it perfect for Goodman blowers and various HVAC systems. Its heavy-duty, waterproof design guarantees longevity and quiet operation. Installation is a breeze, thanks to the six wire hook-up terminals and a handy wiring diagram printed directly on the relay. Trust Dreyoo for dependable performance in your heating and cooling applications.
Best For: HVAC technicians and DIY enthusiasts seeking a reliable fan relay for temperature control in various systems.
Pros:
- UL Certified for safety, ensuring compliance with industry standards.
- Heavy-duty and waterproof design enhances durability and performance.
- Easy installation with six wire hook-up terminals and a printed wiring diagram.
Cons:
- Limited to 24VAC systems, which may not be suitable for all applications.
- Full load amperage of 12 amps may not be sufficient for larger systems.
- May require basic electrical knowledge for proper installation, which could be a barrier for some DIYers.
Supco 90340 General Purpose Switching Relay
Looking for a reliable solution to manage electric signals in your HVAC or refrigeration systems? The Supco 90340 General Purpose Switching Relay might be exactly what you need. With a 24 V coil voltage and double pole double throw (DPDT) contacts, it allows for simple changeover switching, making it versatile for various applications. This relay is UL recognized for safety and CSA certified for quality, ensuring you can trust its performance. Whether you’re controlling fans, vending machines, or HVAC/R systems, the Supco 90340 delivers dependable functionality. For more specifications, be sure to check additional product details!
Best For: The Supco 90340 General Purpose Switching Relay is best for HVAC/R professionals and businesses needing reliable electric signal control in various applications.
Pros:
- Versatile Applications: Suitable for HVAC/R systems, vending machines, and fan controls.
- Safety Certified: UL recognized for safety and CSA certified for quality assurance.
- Easy Switching: Features double pole double throw (DPDT) contacts for simple changeover switching.
Cons:
- Limited Coil Voltage: Operates only at a 24 V coil voltage, which may not be suitable for all systems.
- Potential Compatibility Issues: May require specific configurations for certain applications.
- Not Waterproof: Lacks waterproofing features, which could limit its use in outdoor environments.
Briidea 20 Amp SPDT Power Relay
When you need a reliable solution for managing temperature in HVAC systems, the Briidea 20 Amp SPDT Power Relay stands out with its enclosed design that protects internal components. This relay uses a small current to control larger currents, ensuring your circuits stay safe while extending the switch’s service life. With a maximum load of 20 amps, it’s perfect for pipeline boosting fans and temperature controllers. Plus, the built-in LED indicator makes monitoring easy. Installing it is straightforward—just connect the corresponding wires, and you’re set for efficient temperature control in your home. Enjoy enhanced durability and reliability with this robust relay.
Best For: Homeowners and HVAC professionals seeking a reliable and efficient relay for temperature control and circuit protection.
Pros:
- Durable Design: Enclosed construction protects internal components, enhancing longevity and reliability.
- Easy Monitoring: Built-in LED indicator provides clear visibility of the relay’s working state.
- Simple Installation: Quick and straightforward setup with easy wire connections.
Cons:
- Limited Load Capacity: Maximum electric shock load of 20 amps may not suit high-demand applications.
- Dependence on Small Current: Requires a small current to control larger currents, which may not be ideal for all systems.
- Specific Application: Primarily designed for HVAC systems and temperature controllers, limiting versatility for other uses.
Dreyoo 24V Fan Relay AC Switch (SPST, UL Certified)
The Dreyoo 24V Fan Relay AC Switch is an ideal choice for homeowners and HVAC professionals seeking a reliable and efficient solution for temperature control. This UL Certified SPST relay supports Goodman HVAC systems, making it perfect for furnaces, blowers, and humidifiers. With a 12 Amp current rating and a compact design, it guarantees quiet operation. Its six wire hook-up terminals simplify installation, while circuit protection enhances safety. Weighing just 3.04 ounces, it’s lightweight yet robust. Customers appreciate its performance, reflected in a 4.6 out of 5-star rating. Enjoy peace of mind with Dreyoo’s quality assurance and technical support.
Best For: Homeowners and HVAC professionals seeking a reliable and efficient relay switch for Goodman HVAC systems.
Pros:
- UL Certified for safety and reliability in various applications.
- Compact design ensures quiet operation and easy installation with six wire hook-up terminals.
- High customer satisfaction reflected by a 4.6 out of 5-star rating from 425 reviews.
Cons:
- Limited to 24VAC systems, which may not suit all setups.
- Weighing only 3.04 ounces, it may feel less durable to some users.
- Warranty information is only available upon request, which may be inconvenient for customers.
Appli Parts Heavy Duty Switching Fan Relay (APFR-380)
For those seeking reliable temperature control in HVAC systems, the Appli Parts Heavy Duty Switching Fan Relay (APFR-380) stands out as an exceptional choice. This versatile relay operates at 24 VAC and features a universal design, making it compatible with various heating, air conditioning, refrigeration, and ventilation applications. With configurations for both normally open and normally closed setups, it meets diverse electrical specifications. Its robust ratings support high current loads, ensuring dependable performance. Installation is straightforward, but it’s essential to confirm that dimensions match your existing unit. The APFR-380 is an ideal direct replacement for multiple models, ensuring seamless integration.
Best For: The Appli Parts Heavy Duty Switching Fan Relay (APFR-380) is best for HVAC professionals and DIY enthusiasts looking for a reliable and versatile relay for temperature control in various applications.
Pros:
- Universal Compatibility: Designed to fit a wide range of heating, cooling, and ventilation systems.
- Robust Ratings: Supports high current loads, making it suitable for demanding applications.
- Easy Installation: Simple to install with a multi-position bracket, ensuring a seamless replacement process.
Cons:
- Limited Coil Voltage: Operates only at 24 VAC, which may not suit all systems.
- Installation Requires Confirmation: Users must verify dimensions to ensure compatibility with existing units.
- Not Suitable for Low Voltage Applications: May not be ideal for systems requiring lower voltage relays.

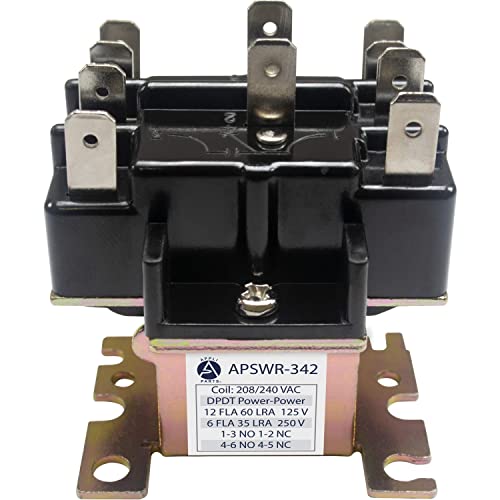

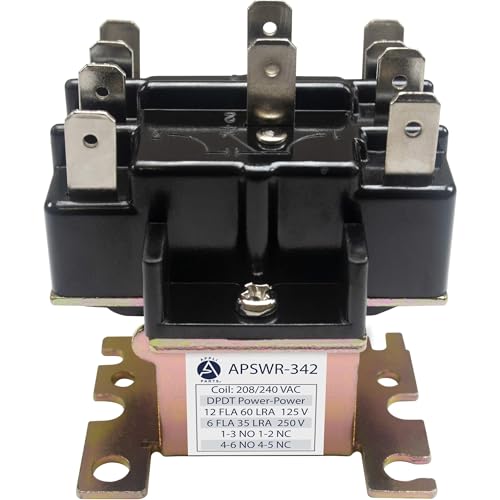

Appli Parts APSWR-342 General Purpose Switching Relay for HVAC Applications
Designed specifically for HVAC professionals and DIY enthusiasts, the Appli Parts APSWR-342 General Purpose Switching Relay stands out with its robust dual-pole, double-throw (DPDT) configuration. With a coil voltage of 208-240 VAC, it efficiently controls the fan motor in air handler units of air conditioning systems. This relay’s terminal configuration offers versatility, allowing for easy integration with various electrical applications. It’s a universal replacement for many brands, ensuring compatibility with any motor that meets the same specifications. Plus, multiple mounting options make installation straightforward, making the APSWR-342 a reliable choice for your HVAC needs.
Best For: HVAC professionals and DIY enthusiasts looking for a reliable switching relay for air conditioning systems.
Pros:
- Versatile Compatibility: Works with any brand of motor or electrical application that meets the same specifications.
- Easy Installation: Multiple mounting options simplify the integration process into existing systems.
- Robust Performance: Designed with a DPDT configuration to efficiently control fan motors in air handler units.
Cons:
- Limited Coil Voltage: Only supports 208-240 VAC, which may not suit all HVAC applications.
- Replacement Only: Primarily acts as a replacement for specific models, limiting its use for unique setups.
- Not Suitable for Low Voltage Applications: Not designed for low voltage systems, which may require alternative relays.
90340 – 24 Volt Coil General Relay for HVAC Applications
If you’re seeking a reliable solution for controlling fan motors in air handler units, the 24 Volt Coil General Relay stands out as an ideal choice for HVAC applications. This versatile relay replaces popular brands like White Rodgers and Honeywell, ensuring compatibility with various systems. With a 2 pole, 24 VAC coil design, it efficiently manages power ratings up to 15A at 277 VAC. Its compact dimensions of 2 1/8” x 7/8” x 2 1/4” make it easy to install, while its robust contact ratings provide the durability you need for both HVAC and general electrical installations.
Best For: HVAC technicians and electricians looking for a reliable relay solution to control fan motors and general electrical installations.
Pros:
- Versatile Compatibility: Directly replaces popular brands such as White Rodgers and Honeywell, ensuring easy integration into existing systems.
- Robust Power Ratings: Capable of handling up to 15A at 277 VAC, making it suitable for various applications including HVAC and commercial equipment.
- Compact Design: Dimensions of 2 1/8” x 7/8” x 2 1/4” allow for easy installation in tight spaces.
Cons:
- Limited Voltage Options: Specifically designed for 24 VAC applications, which may not suit all systems requiring different voltage levels.
- Current Draw: Requires 334 mA to operate, which could be a concern for systems with limited current capacity.
- Not Suitable for High-Power Applications: Maximum ratings may restrict use in high-power scenarios, such as larger HVAC systems or industrial equipment.
90370 General Purpose 24V AC Relay
The 90370 General Purpose 24V AC Relay stands out as the ideal choice for HVAC professionals and DIY enthusiasts seeking reliable temperature control solutions. With a high load capacity of 12A, it handles medium to heavy-duty electrical loads efficiently. You’ll appreciate the multiple contact forms—SPST-NO, SPST-NC, and SPDT 1 NO/1 NC—providing flexibility for various setups. Its sealed enclosure protects against dust and moisture, ensuring longevity in demanding environments. Plus, it’s compatible with numerous electrical systems, making it perfect for controlling fans and HVAC systems. Trust the 90370 relay for consistent performance and durability in your temperature control projects.
Best For: HVAC professionals and DIY enthusiasts looking for reliable and efficient temperature control solutions.
Pros:
- High load capacity of 12A, suitable for medium to heavy-duty electrical loads.
- Multiple contact forms (SPST-NO, SPST-NC, SPDT 1 NO/1 NC) offer flexibility for various setups.
- Sealed enclosure protects against dust and moisture, ensuring durability in harsh conditions.
Cons:
- Limited to 24V AC compatibility, which may not suit all applications.
- Requires a specific voltage to function, limiting its use in other electrical systems.
- May be overkill for low-load applications, where smaller relays could suffice.
Factors to Consider When Choosing an HVAC Relay Switch
When you’re choosing an HVAC relay switch, it’s essential to take into account several key factors. You’ll want to look at the coil voltage specifications, load capacity ratings, and contact configuration types to guarantee compatibility with your system. Don’t forget about durability and installation requirements, as these will impact the long-term performance and reliability of your setup.
Coil Voltage Specifications
Choosing the right coil voltage specifications for your HVAC relay switch is vital for peak performance. The correct coil voltage determines the operating voltage needed for the relay to activate effectively. Common coil voltages include 24 VAC and 208-240 VAC, depending on your application. Selecting the right voltage guarantees compatibility with your existing electrical system, safeguarding both the relay and connected devices from potential damage. Most HVAC relays operate on low voltage, usually 24 VAC, making them safe for residential and commercial use. It’s important to match the relay’s coil voltage to the control signal voltage from your thermostat or control system. Incorrect voltage can lead to malfunction, reduced performance, or complete failure, so choose wisely.
Load Capacity Ratings
Understanding load capacity ratings is essential for guaranteeing your HVAC relay switch operates safely and efficiently. These ratings indicate the maximum current and voltage the relay can handle, typically measured in amperes (A) and volts (V). For standard applications, relays usually have a load rating of 12 Amps, while heavy-duty options can support up to 20 Amps or more. It’s important to take into account the relay’s contact ratings, like 12 FLA and 60 LRA at 125V, to determine if it’s suitable for your specific electrical load. Always choose a relay with a load capacity that exceeds your expected load to enhance reliability and minimize the risk of overheating or failure. Matching these ratings with your HVAC system’s requirements guarantees peak performance.
Contact Configuration Types
Selecting the right contact configuration type for your HVAC relay switch is just as important as ensuring its load capacity ratings meet your system’s demands. HVAC relays come in various configurations: Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), and Double Pole Double Throw (DPDT). SPST relays are straightforward, offering a simple on/off operation, perfect for basic needs. If you need more flexibility, SPDT relays allow you to control two circuits with one switch. For more complex setups, DPDT relays can manage multiple devices simultaneously. The contact configuration you choose affects the relay’s functionality, load capacity, and compatibility with your existing electrical systems, so consider your specific application requirements carefully before making a decision.
Durability and Materials
When it comes to HVAC relay switches, the durability and materials used in their construction play a critical role in their performance and lifespan. Premium metal components offer enhanced resistance to wear and corrosion, ensuring longevity. Heavy-duty relays can last over a million operations, making them ideal for demanding environments. If you’re concerned about moisture, look for waterproof and weather-resistant features, as these contribute greatly to durability in HVAC applications. The contact material, typically silver or other conductive metals, minimizes contact resistance and maintains efficient electrical performance. Remember, proper installation and adherence to safety standards can further enhance the durability of your relay switch, preventing premature failure and ensuring reliable temperature control in your home.
Installation Requirements
Choosing the right HVAC relay switch involves several key factors to guarantee peak performance and compatibility with your system. First, confirm the relay switch’s coil voltage matches your HVAC system’s specifications, typically 24VAC, to avoid electrical mismatches. Next, refer to the wiring diagram that comes with the relay for proper installation, as incorrect wiring can lead to malfunctions or system damage. You’ll also want to verify the relay’s contact ratings, such as Full Load Amperage (FLA) and Locked Rotor Amperage (LRA), confirming it can handle the electrical load. Additionally, consider the physical dimensions and mounting options to fit the relay in the designated space. For safety and compliance, professional installation is recommended, especially for complex systems.
Compatibility With Systems
Having established installation requirements, it’s equally important to confirm compatibility with your HVAC system. Start by matching the voltage requirements of your relay—whether it’s 24 VAC or 208-240 VAC—so everything functions properly. Next, ascertain the relay’s contact configuration, like SPST or DPDT, aligns with your system’s wiring and needs. Don’t forget to check the relay’s current and power ratings; they must handle the electrical load from components like fan motors or compressors. Additionally, consider the relay’s design, including terminal configurations and mounting options, to fit in the available space and allow for easy installation. Finally, verify that the relay can replace or cross-reference with existing models to avoid compatibility issues and confirm reliable performance.
